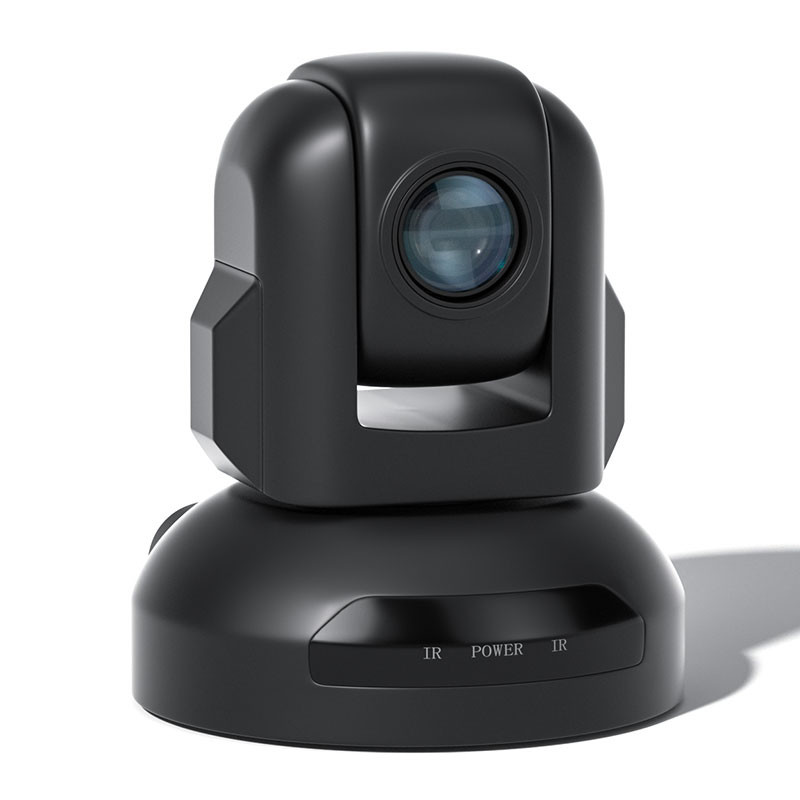

OEM ODM 2021 newest PTZ Camera for broadcasting and recording camera

Name: OEM ODM 2021 newest PTZ Camera for broadcasting and recording camera
Brand: Opaxy
SKU: HD652/653/654 Series
Price: 185.00 USD
Availability: InStock
Rating: 4.5 (103 reviews)

Price :	$185.00/Pieces 1-9 Pieces	Packaging Details :	1 set/box, the protection material inside<br>Packaging can be customized

Place of Origin:	Beijing, China	Brand Name:	Opaxy
Model Number:	HD652/653/654 Series

Detail Information
Type:	Audio Conference System, Network Conference System, Video Conference System	Function:	Image Capture
Model:	HD652/653/654 Series Premium

Product Description

HD652/653/654 Series Premium Video PTZ Cameras Specification Sheet

Model No.:HD652 /HD653 /HD654 Series

0x, 3x, 10x Optical zoom | 1080p@30fps |UVC1.5 (Single USB Cable)

Premium USB PTZ Camera is equipped with 0x, 3x, or 10x Optical zoom block optional, and powered by a Single USB Cable, it output HD Video and support PTZ movement Control. 2.1Megapixel Effective CMOS Sensor helps achieve 1080p@30 high quality images. USB 2.0 ideally suits Small or Medium size conference rooms, it can be connected to laptop and is compatible with any Web Conferencing system in Windows and MAC OS. Features: :  PRO PTZ Camera design  OSD Menu/Lens Menu  Speed Match  UVC Protocol 1.5  IR remote controller unit  USB 2.0 Connection

Performance  1920x1080pixels progressive @30fps  0x,3x or 10x optical zoom lens  HOV 72.5/73/58 degree  1/2.7”HD color CMOS Sensor  Pan ± 180degree Pan movement  Tilt +90 degree, - 30 degree  64 preset positions  4 cruise lines  No need Power adaptor

Dimension L 124mm x W 140mm x H145mm Installation:  Desktop  Standard Tripod  5 meters USB Cable Accessories List:

1)5 meters USB 2.0 Cable 2)L- Type bracket 3)HD PTZ Camera 4)Installation kits package 5)User’s manual book 6)IR remote control 7)DC-12V/2A Power adaptor 8)RS232 Control cable

Specification Sheet

Model number			HD652	HD653	HD654
			0X	3X	10X
Image Sensor	Sensor	1/2.7”HD color CMOS			1/3" HD Color CMOS
	Effective pixel	2.1 Megapixel	2.1 Megapixel	2.1 Megapixel
	Minimum Scene illumination	0.5Lux at F2.0	0.5Lux at F2.0	0.1Lux at F1.2
	White Balance	AUTO	AUTO	MANUAL/AUTO/ATW/IND OOR/OUTDOOR
	Gain Control	AUTO	AUTO	AUTO
	Back-light compensation	N/A	N/A	ON/OFF
	S/N Ratio	>50db	>50db	>50db
	IRIS	fixed IRIS (F1.6-F2.5)	Fixed Iris	F1.6-F2.5
Lens	Focus	f=4mm	f=5mm-15mm	f=4.7-47mm
	Zoom	Fixed lens	3x Optical Zoom	10x Optical Zoom
	Hov	72.5 degree	73 degree	58 degree
Video Output			USB 2.0 Type B	USB 2.0 Type B	USB 2.0 Type B
Video format			MJPEG: 1080P30,720P30, 640x480, 640x360			MJPEG: 1080P25,720P30/25, 640x480, 640x360
Control Interface			USB	USB	USB
PTZ Control Protocol			VISCA,PELCO-D	VISCA,PELCO-D	VISCA,PELCO-D,UVC
Baud Rate			9600/38400bps	9600/38400bps	9600/38400bps
Patrol tours			4	4	4
Preset			64	64	64
OSD Menu			N/A	N/A	LENS OSD/DOME OSD
Speed Matching Function			Support	Support	Support
Image Auto Flip			Support	Support	Support flip/mirror
Pan Speed			0-280 degrees/s	0-280 degrees/s	0-40 degrees/s
Tilt Speed			0-100 degrees/s	0-100 degrees/s	0-40 degrees/s
Pan Rotation Angle			0-360 degree	0-360 degree	0-350 degree
Tilt Rotation Angle			+ 90, - 45degree	+ 90, - 45 degree	+ 90, - 30 degree
Auto Pan Scan			Support	Support	Support
Remoter Control			IR Wireless remote control P/T/Z	IR Wireless remote control P/T/Z	IR Wireless remote control P/T/Z
Power			USB 2.0 Power supply	USB 2.0 Power supply	USB 2.0 Power supply
Operation Temperature			0℃～50℃
Environmental humidity			0-95%RH(non-condensaion)
Length X width X high			L 124mm x W 140mm x H145mm
Weight			640g	640g	705g
